For decades, thermal insulation on heating pipes was a standard feature in homes, factories, and schools. Often hidden behind walls, under floorboards, or exposed in basements, this insulation – known as “pipe lagging” – was designed to keep heat in and cold out. However, until the late 20th century, the “miracle ingredient” in this lagging was often asbestos.
Unlike modern fiberglass or foam insulation, asbestos pipe lagging presents a unique and severe threat. Because it was often applied as a paste or wrapped in fibrous cloth, it is highly susceptible to damage. Understanding exactly what this material is and how to identify it is critical for homeowners and property managers to prevent accidental exposure to deadly fibers.
Classification: Types of Asbestos in Lagging
Not all asbestos lagging is identical. It typically falls into specific categories based on composition and application method.
1. Composition
While there are six types of asbestos, three were predominantly used in thermal insulation:
- Chrysotile (White Asbestos): The most common form of asbestos, often found in cloth wraps and woven tapes around joints. It has long, curly fibers.
- Amosite (Brown Asbestos): Frequently used in high-temperature thermal insulation due to its heat resistance. Its fibers are straight and needle-like, making them easily inhalable and highly dangerous.
- Crocidolite (Blue Asbestos): Less common in residential lagging but found in industrial high-pressure steam pipes. It is considered the most toxic form due to its extremely thin fibers.
2. The Material Matrix
How the asbestos was applied determines its physical form:
- Hard Lagging (Sectional): This often looks like a hard plaster shell. It is a pre-formed section of insulation (often containing up to 85% magnesia and 15% asbestos) clamped around the pipe and coated.
- Textiles (Wraps and Ropes): Woven asbestos cloth or rope was often wrapped around valves, joints, and bends where rigid insulation couldn’t fit.
- Loose Fill: In older systems, the space between a pipe and a casing might be filled with loose, raw asbestos debris.

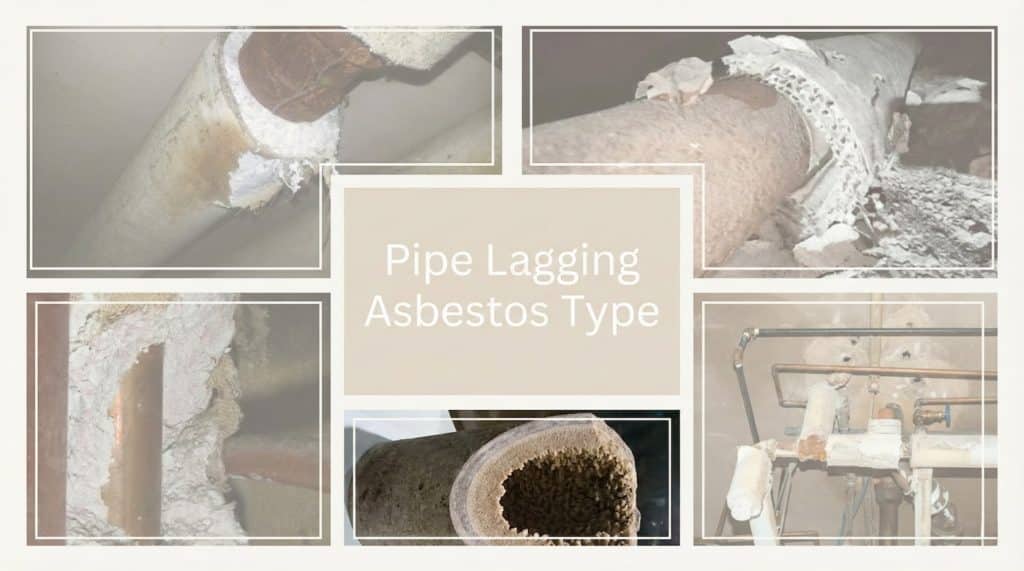

Visual and Physical Identification
Identifying asbestos pipe lagging strictly by sight is impossible, as many non-hazardous materials (like calcium silicate or fiberglass) look similar. However, certain visual cues warrant immediate caution.
Appearance Indicators
- Color and Finish: Pipe lagging was often painted, commonly with “lagging paint” in white, buff, or red. Underneath the paint, the material may look like off-white or grey plaster.
- The “Canvas” Wrap: Older lagging is frequently wrapped in a canvas or calico cloth that has been painted over. If this cloth is torn, you may see fibrous, fluffy material underneath.
- Age Profiling: If the building or the heating system was installed before the year 2000 (and especially before 1980), the insulation should be presumed to contain asbestos until proven otherwise.
Condition and “Friability”
The most critical factor in asbestos safety is friability – the tendency of a material to crumble under hand pressure.
- High Friability: Pipe lagging is notoriously friable. Unlike floor tiles (which are hard), old lagging can be soft and easily crushed.
- Degradation: Look for signs of water damage, hanging debris, or powdering on the floor beneath the pipes. These are signs of active fiber release.
Risk Assessment and Exposure Vectors
Asbestos lagging is generally considered a higher risk than many other asbestos products because of how easily it releases dust.
Disturbance Mechanisms
Exposure rarely happens when the material is intact and undisturbed. The danger arises during:
- Maintenance: Plumbing repairs, cutting into pipes, or sanding down insulation for repainting.
- Accidental Damage: Knocks from moving furniture, vibrations from nearby machinery, or water leaks that turn the material into a mushy pulp.
Health Implications
When lagging is disturbed, it releases microscopic fibrils into the air. When inhaled, these fibers lodge permanently in the lungs. Because lagging often has a high asbestos content (sometimes 100% in rope gaskets), the exposure intensity can be significant. This creates a pathway for diseases such as Mesothelioma, Asbestosis, and Lung Cancer, which often have latency periods of 20 to 50 years.
Management and Remediation Protocols
If you suspect your pipes are lagged with asbestos, follow these strict protocols.
1. The “Do Not Touch” Rule
Stop work immediately. Do not vacuum debris (standard vacuums spread the fibers), do not sweep, and do not try to tape it up yourself. Isolate the area.
2. Professional Verification
You must hire an accredited asbestos surveyor. They will take samples safely and analyze them in a lab using Polarized Light Microscopy (PLM). This is the only way to know for sure.
3. Control Options
- Encapsulation: If the lagging is in good condition, a professional can seal it with a specialized bridging encapsulant or rigid barrier. This prevents fiber release without the trauma of removal.
- Abatement (Removal): If the lagging is damaged or if the pipes need replacement, Asbestos Insulation Removal is necessary. This is complex work requiring negative pressure enclosures, airlocks, and Type H hazardous vacuums. It must be performed by licensed contractors.
Get a Professional Quote: Synchron Demolition
Ensuring the safety of your property requires experienced hands. Synchron Demolition offers professional asbestos removal services designed to handle high-risk pipe lagging with precision and care.
We provide professional asbestos removal quotes to help you plan your remediation project effectively. Don’t leave safety to chance trust our licensed experts to manage the abatement process from start to finish.
Conclusion: Safety First
Old pipe lagging is a legacy danger hiding in plain sight. While it served a functional purpose in the past, it now represents a significant liability. Identifying it requires a sharp eye for age and condition, but confirming it requires science. When in doubt, presume it is dangerous, restrict access, and call a professional. Your lungs are not a filter for history.
Frequently Asked Questions
Q: What does asbestos pipe insulation look like? A: It often resembles a thick, plaster-like coating wrapped in painted canvas or calico cloth. It may look like cardboard or fuzzy grey/white fuzz where the outer wrap is damaged.
Q: How can I tell the difference between fiberglass and asbestos lagging? A: Fiberglass usually has a distinct yellow or pink color and a glassy, fibrous texture. Asbestos tends to be grey, white, or off-white and more matte. However, older fiberglass was sometimes installed with asbestos-containing outer wraps, so visual ID is not reliable.
Q: Is pipe lagging dangerous if left alone? A: Generally, if the material is completely intact, sealed, and unlikely to be disturbed, the risk is low. The danger arises when it is damaged, fraying, or deteriorating.
Q: What is “friability” regarding pipe lagging? A: Friability refers to how easily the material crumbles. Pipe lagging is classified as “highly friable,” meaning it can be pulverized into dust by hand pressure, releasing massive amounts of fibers.
Q: Can I remove asbestos pipe lagging myself? A: No. In most jurisdictions, removing pipe lagging is classified as high-risk licensable work. It requires specific training, respiratory equipment, and waste disposal protocols that a DIYer cannot legally or safely provide.
Q: What is the difference between encapsulation and removal? A: Removal involves taking the material off the pipes entirely. Encapsulation involves coating the material with a penetrant or bridging sealant to lock the fibers in place. Encapsulation is cheaper but requires ongoing management to ensure the seal remains intact.
